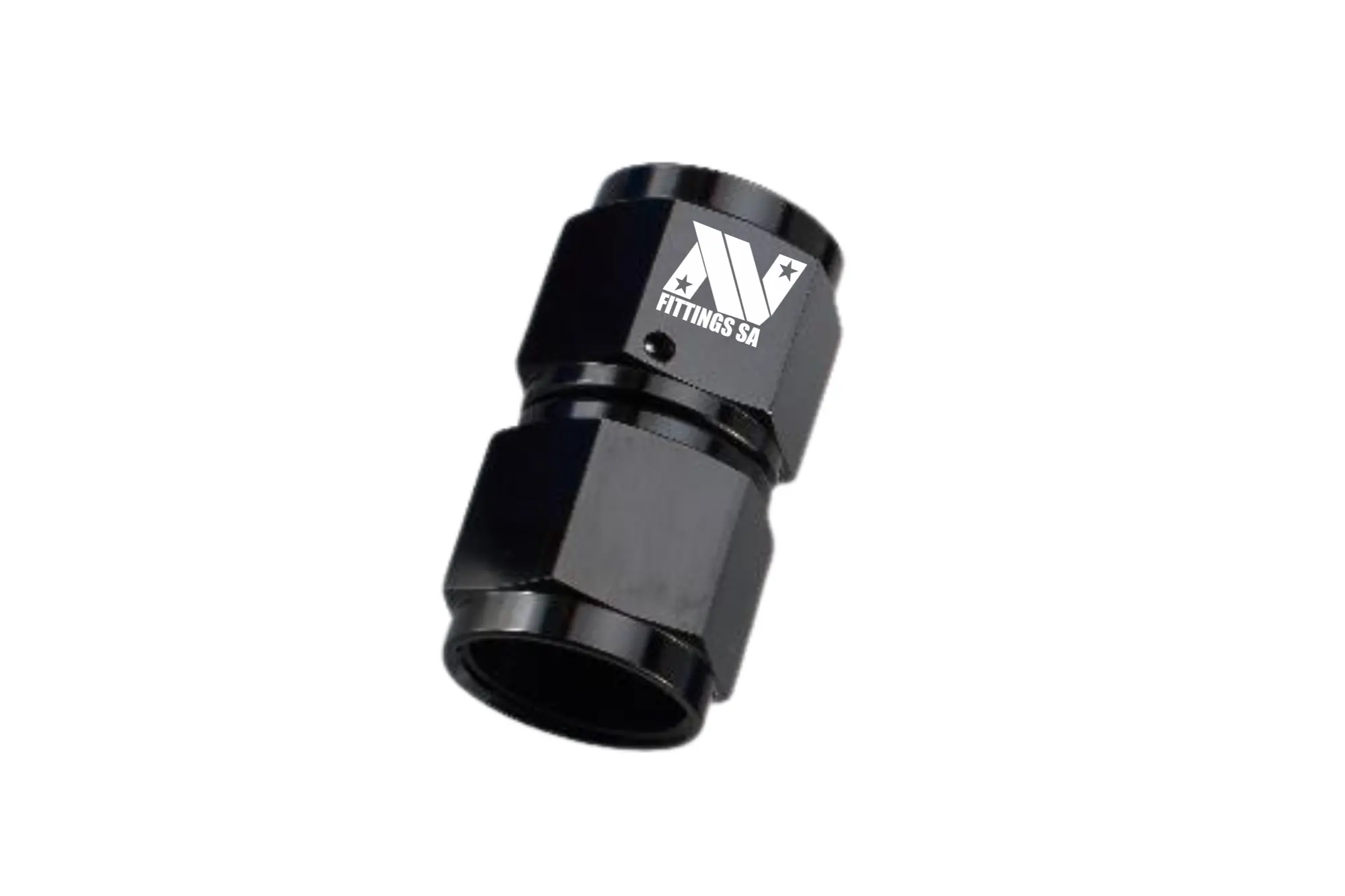

ANF Female Flare Swivel Adapters Straight AN12

AN12 straight female flare swivel adapter. Large-bore straight coupler with a rotating joint for stress-free alignment.

,

ANF Female Flare Swivel Adapters Straight AN12

R289.99

AN12 straight female flare swivel adapter. Large-bore straight coupler with a rotating joint for stress-free alignment.

SKU: ANFFCM0505-12-0 Categories: ,

A straight female flare swivel adapter in AN12, our larger-bore option in this family. At AN12 the hose is stiff and heavy, which makes it very difficult to twist a run into alignment during assembly. The swivel joint solves that: it decouples the sealing face from the orientation of the hose, so the flare can be torqued correctly while the line sits along its natural path with no wind-up loaded into it. That matters because a twisted large-bore hose puts constant load on every fitting in the circuit. Typical uses are high-flow fuel systems, dry sump scavenge lines and big oil cooler runs. Confirm both mating parts use the 37-degree AN flare seat.
